6000w High Power Laser Cleaning Machine Fiber Laser Cleaner for Ship Track Car Repair Machine Metal Cleaning

Short Description:

Laser cleaning is a new technology based on the interaction between laser and substance, which can achieve the effect of removing surface pollution and attachments. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, etc., especially suitable for high-speed online cleaning in designated areas. The machine is easy to install, operate and automate. Simple operation, turn on the power, turn on the equipment, you can carry out no chemical reagents, no media, no dust, no water cleaning, can fit the surface cleaning, cleaning surface cleanliness is high, can remove the object surface resin, paint, oil, stains, dirt, rust, coating, coating and oxide layer, and the industry is widely used. Covering ships, auto repair, rubber molds, high-end machine tools, tracks and environmental protection.

Send email to us

Product Detail

Product Tags

Supply voltage	Three-phase 380V±10%, 50/60Hz AC
Overall power consumption	≤25KW
Working environment temperature	0℃～40℃
Working environment humidity	≤80%
Average laser power	>6000W
Pulse width	160ns
Central wavelength	1075-1085nm
Power adjustment range (%)	10-100%(gradient adjustable)
Frequency adjustment range (kHz)	1-5000Hz（gradient adjustable）
Fiber length	5m
Cooling mode	Water-cooling
Scanning range (width)	200-500mm
Scanning speed	40000mm/s
Field lens focal length (mm)	1500mm

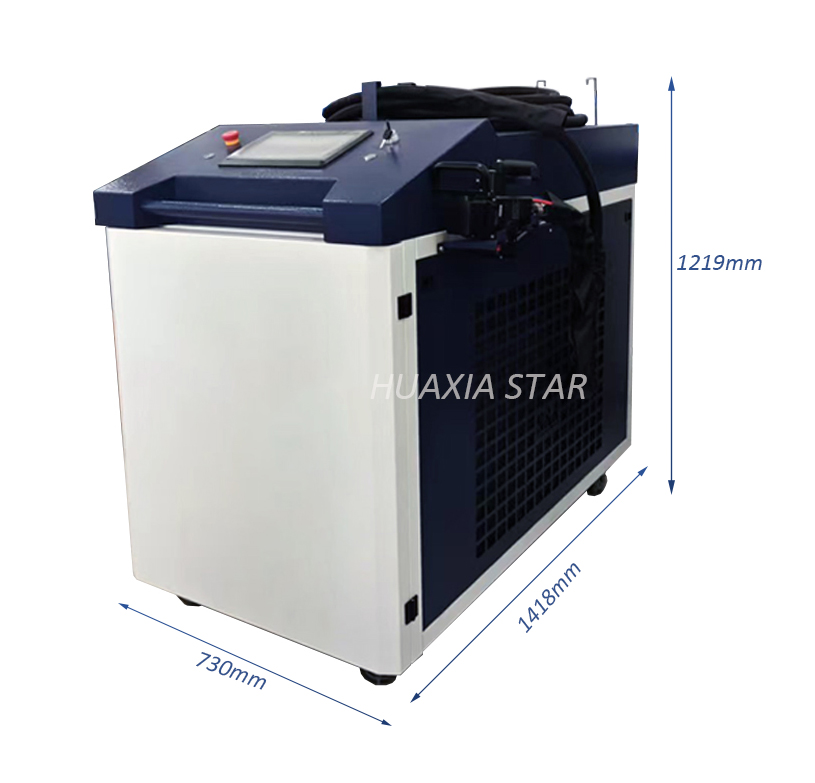

Machine size (L,W,H)	About 1420mm750mm1220mm
Machine weight	240KG
Cleaning head weight	＜2.2Kg
Mode of operation	Handheld/Automated

6000W Laser Cleaning Machine Features:

◎ Non-contact cleaning, does not damage the parts matrix;

◎ Precise cleaning, can achieve precise position, precise size selective cleaning;

◎ Does not need any chemical cleaning solution, no consumables, safe and environmental protection;

◎ Simple operation, can be hand-held or with the robot to achieve automatic cleaning;

◎ Ergonomic design, operation labor intensity is greatly reduced;

◎ High cleaning efficiency, saving time;

◎ Laser cleaning system is stable, almost no maintenance.

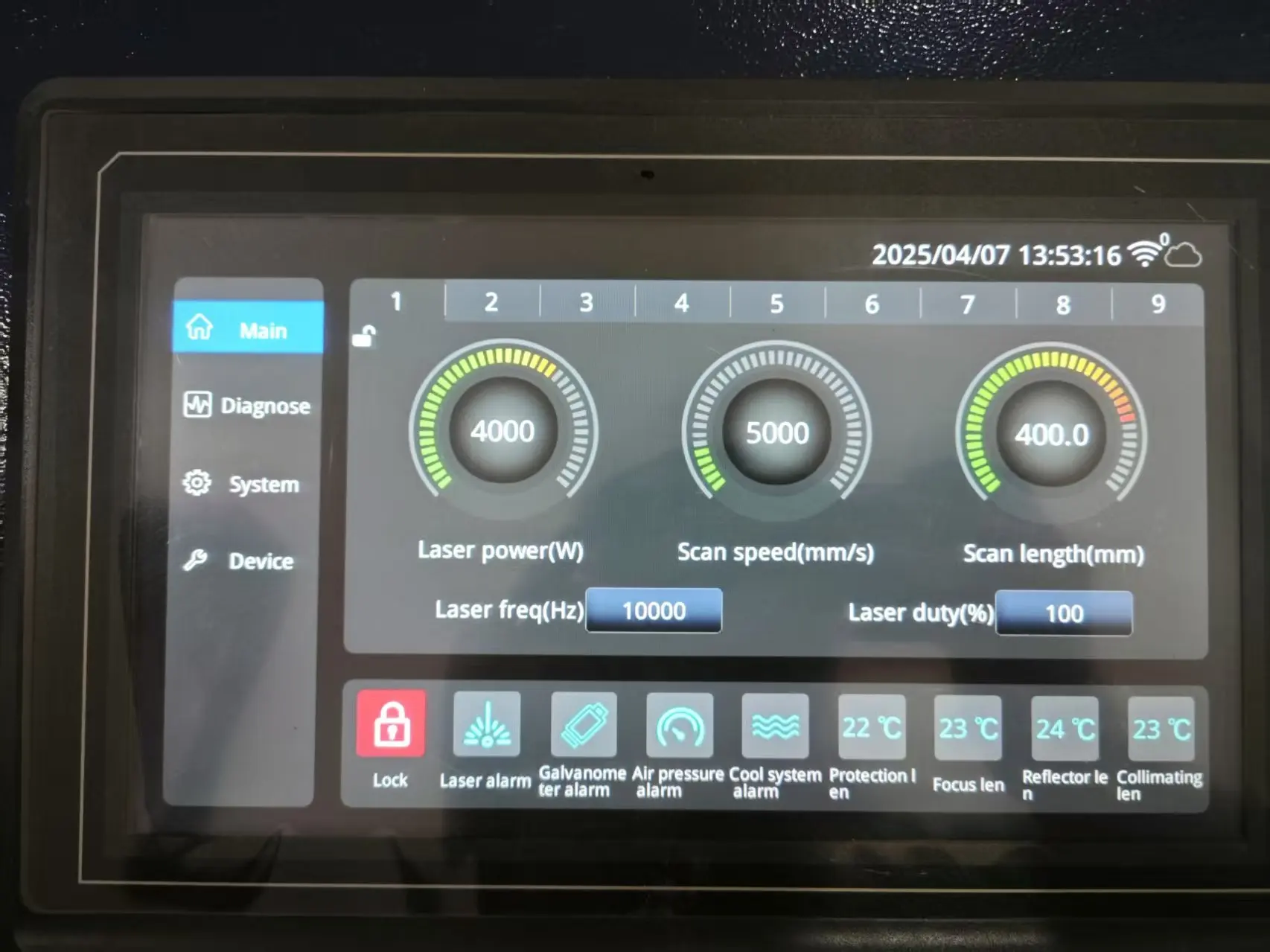

Electronic Touch Screen

Strong compatibility. Multiple light emission modes.
Maintenance-free, and long service life.
Can connect to mobile phone to operation the machine easily.

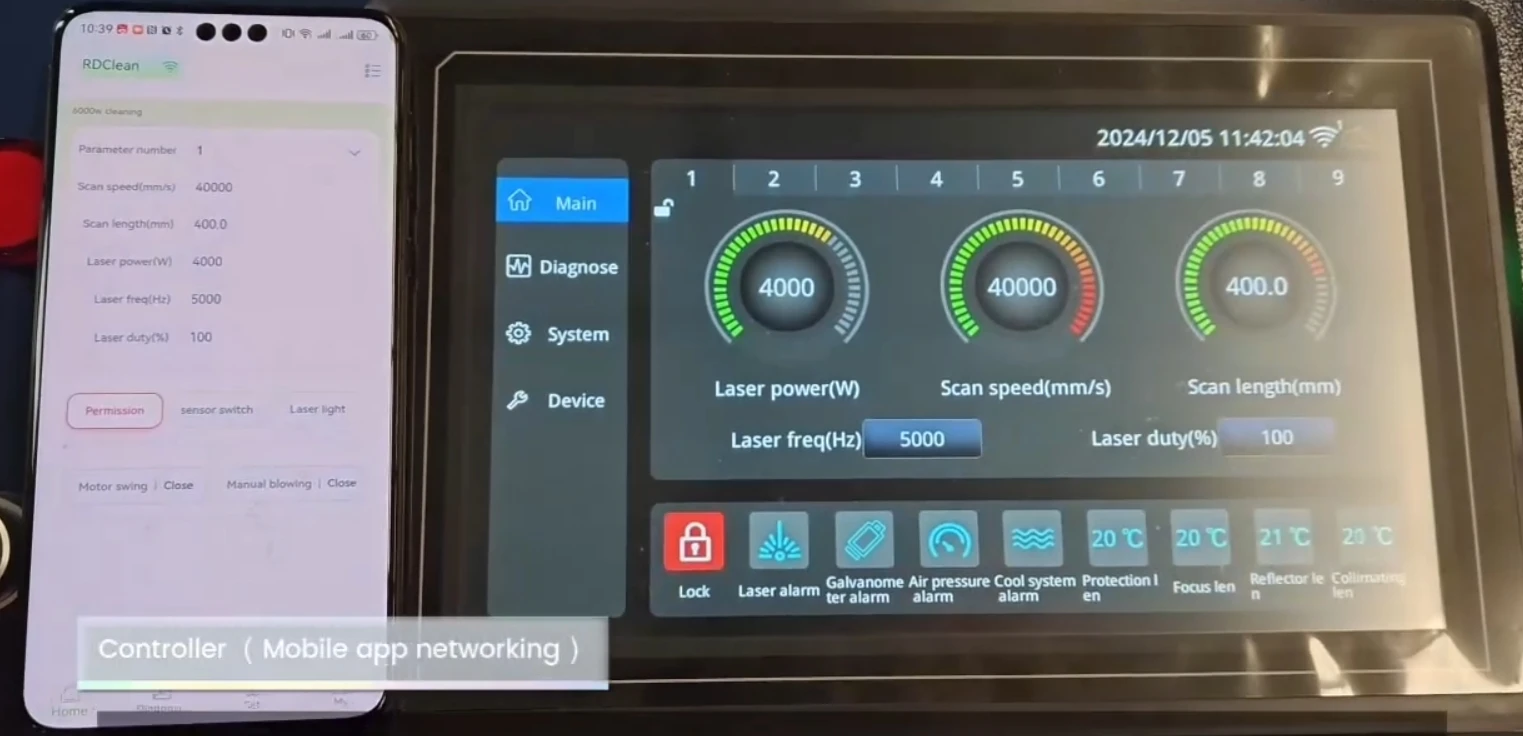

Mobile Phone App Control

Users can connect the board through this APP to achieve the purpose of wireless connection control, which can effectively solve the problem of the long distance between the processing station and the equipment and the continuous round trip, can support remote viewing of the equipment status and parameter adjustment, convenient for equipment management and maintenance.

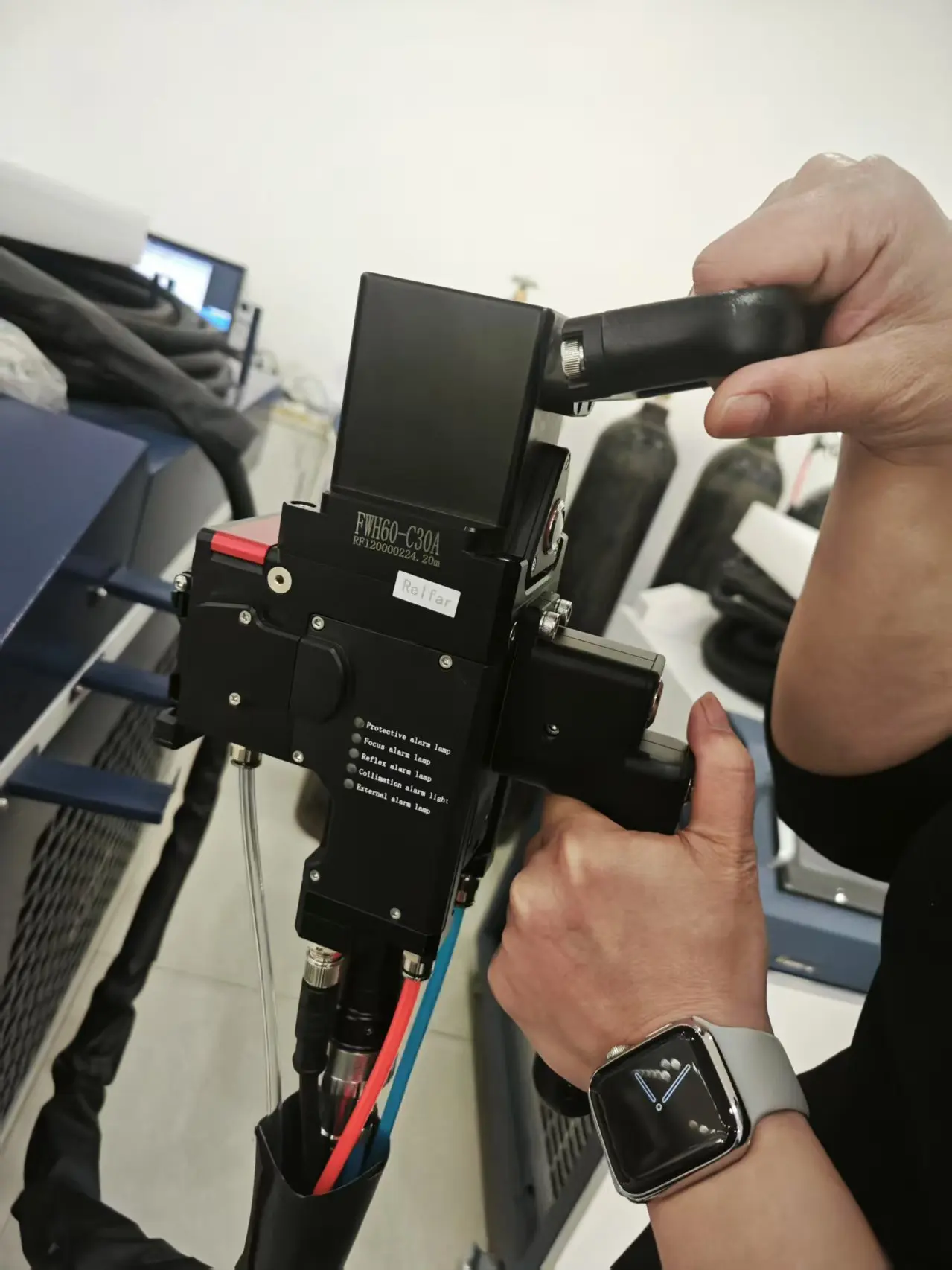

Laser Cleaning Head

Cleaning head weight <2.2Kg

Handheld laser cleaning machines have more precise cleaning positioning and can selectively perform precise size cleaning, cleaning wherever the laser is irradiated.It can flexibly respond to various objects and angles. Easy to operate and portable move.

The front end of the gun has a clamshell protection plate to better ensure the safety of users.

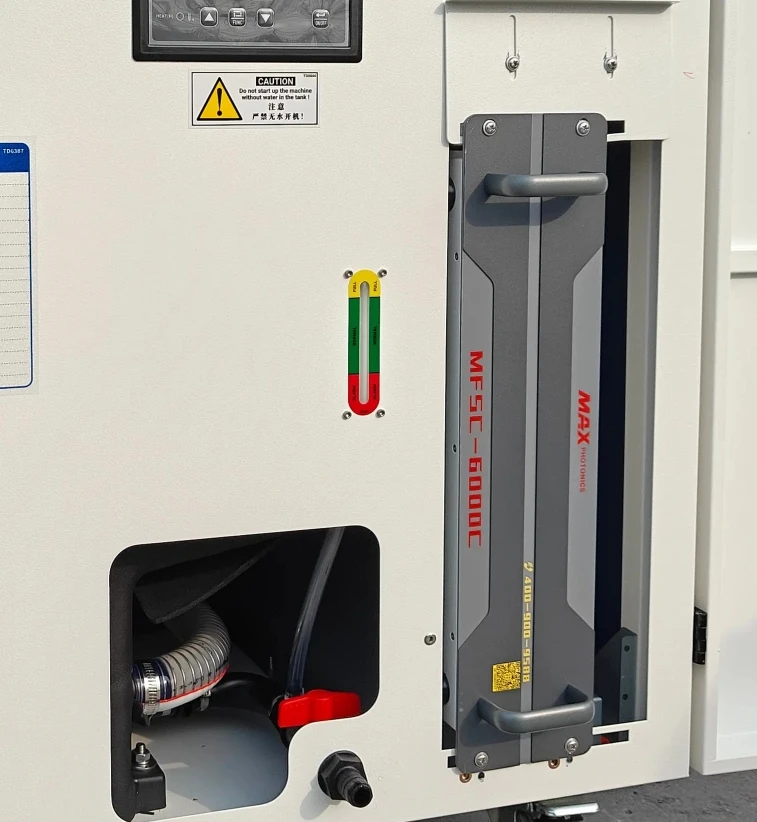

Laser Source

Uses famous brand MAX laser, Max has an efficient and professional R&D and production team, which is the top quality in China.The lasers have higher electro-optical conversion efficiency, higher and more stable optical quality. Continuously adjustable laser power.

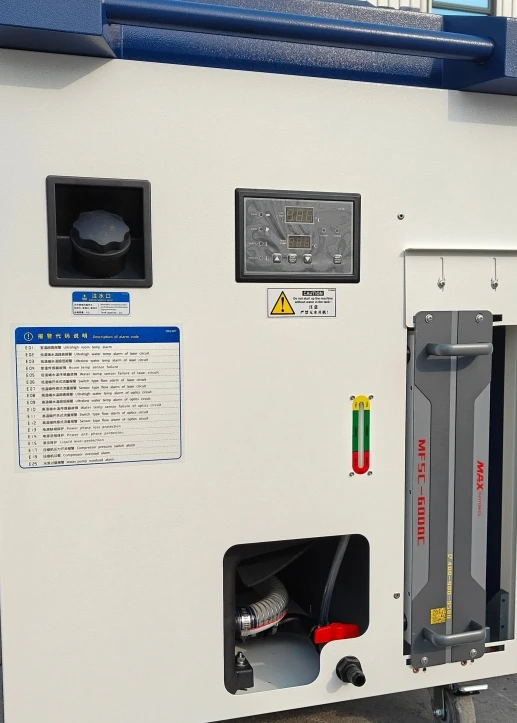

Water Chiller

Specially developed for fiber laser equipment, excellent cooling effect. Stable and reliable performance, low failure rate. Overall small size Compatible with other hardware Performance remains stable Energy saving during operation.
